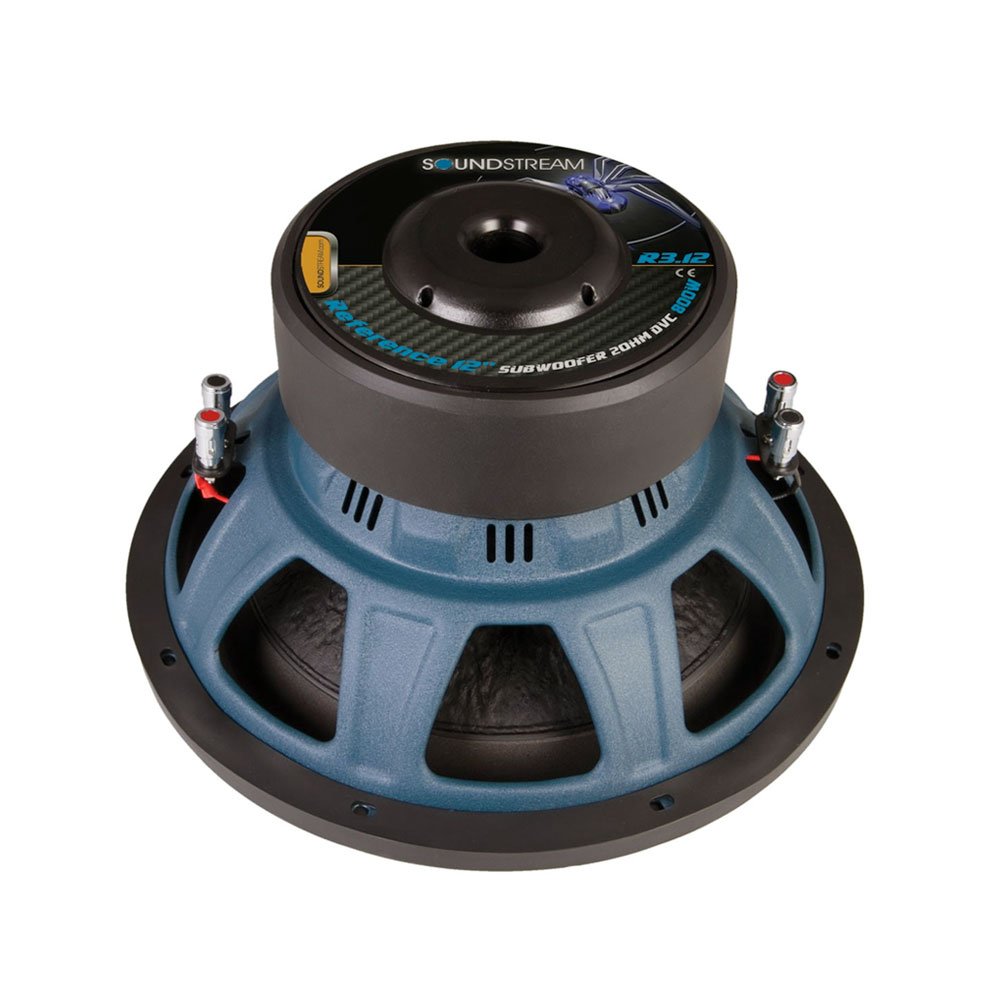

Sometimes a woofer comes along that changes the game. The R3 is just that, it has a high roll surround for an extended excursion. With a 4-Layer voice coil and a gigantic motor structure, it can handle some serious authority. With incomparable sound quality, this woofer can get down and hang with just about any other woofer out there. Whether an SPL competitor or an SQ competitor this is a woofer that can do it all.

Reference R3 Woofers use fiberglass stranding woven together for ultimate strength and less elasticity. A heavy soaking in epoxy combined with sonic qualities of pulp paper backing process itself worth of any system.

• • Woven Fiberglass Composite Cone
  • 2.5″ 4-Layer Voice Coil
  • Extended Excursion Polyurethane Surround
  • Back Plate & T-Yoke Venting


    SPECIFICATIONS	R3.12
    RMS Power (watts)	800
    Efficiency (1w/1m)	84.66
    Voice Coil Configuration	2.5″ DVC 2Ω
    Mounting Depth	6.875″
    Optimum Sealed ft3	1.5
    Optimum Ported ft3	2.25



    Soundstream	R3-12
    Imp. (Ohm)	D4
    Re	2.1672
    Fs (Hz)	33.72
    Qes	1.1741
    Qms	6.2245
    Qts	0.9878
    Le (mH)	0.9794
    Diam	12
    Vas (L)	59.8989
    BL	10.4883
    Mms (g)	281.2842
    Sen (db)	84.66
    RMS	800
    Mounting D	6 7/8″
    CutOut Diam	11.5



    Recommended Enclosures
    Sealed Opt	1.5 ft²
    Ported Opt	2.25 ft²
    Port WxL	6″x7″
    F3 (Hz)	34
